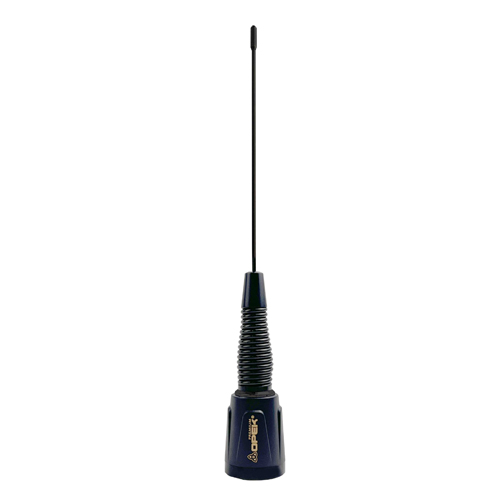

MODEL : UH-416SB
UHF MOBILE WIDE BAND COMMUNICATION ANTENNA
(No Tuning Needed)
- NMO Mounting
- Gold Plated Spring Contact
- Solid Brass bushing & Ferrule in Black Chrome Finish
Electrical Specifications :
- FREQUENCY : 406 ~ 470MHz
- Bandwidth : 64MHz
- GAIN : 5.0 dBi with Ground Plane
- Wave : 1/2 wave
- V.S.W.R. LESS THAN 2.0
- IMPEDANCE : 50 OHMS
- POWER CAPACITY : 160W
- CONNECTION : NMO
- LENGTH : 31cm (12 in)
