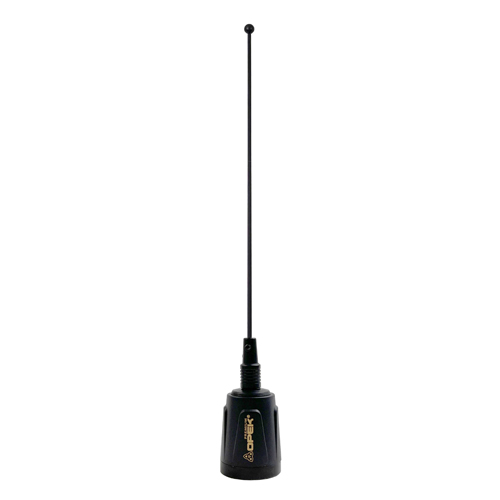

MODEL : OP-1229WB
VHF NGP Mobile Antenna - NO TUNING Needed (Black Finished)
Features:
OPEK Premium wideband no tune VHF antennas provides high efficiency and top performance for mobile coverage. Designed with no tuning required and whip fully assembled to minimize workload. Featuring a rugged compact housing and tapered whip with the highest grade stainless steel.
- Wideband no tuning frequencies for seamless operation and ease of installation
- Rugged stainless steel tapered whip, heavy-duty spring for maximum durability and shock absorption
- Thick-wall housing, double seals with O ring and gasket for maximum weatherproofing and environment protection
- Compatible with all 3/4” mounts
- OP-1229WB will operate with or without a ground plane
Specifications:
- Frequency Range (MHz) : 148 - 174
- Bandwidth (MHz) : 26 MHz
- Antenna Wave : ½ Wave
- Antenna Gain : 4.5 dBi (NGP)
- Maximum Power (Watts) : 160
- Nominal Impedance (Ω): 50
- VSWR: ≤ 1.80 : 1
- Height (in) : 34.8"

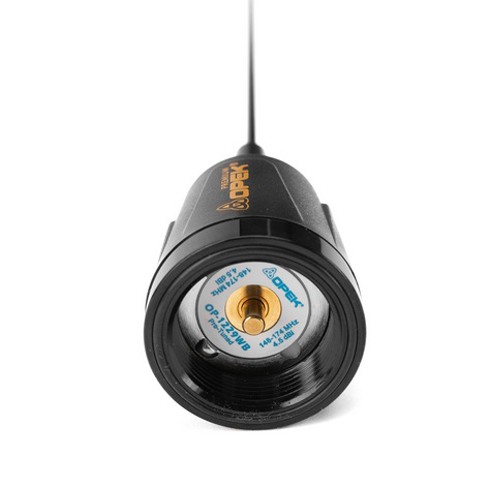

- Connection : NMO TYPE
- Whip : Stainless Steel, Ø3 mm Taper Whip

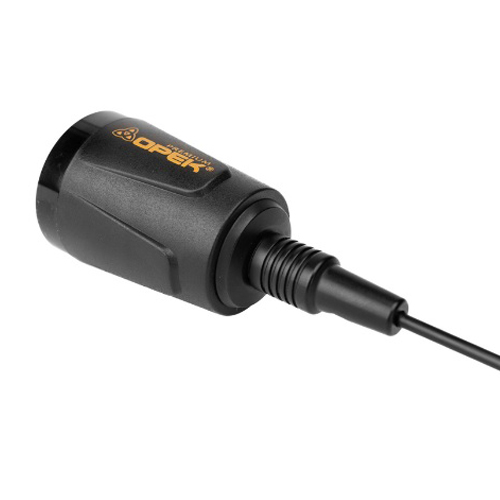

- Base Coil Housing: Molded Polymer Jacket with Copper Black Chrome Plated
