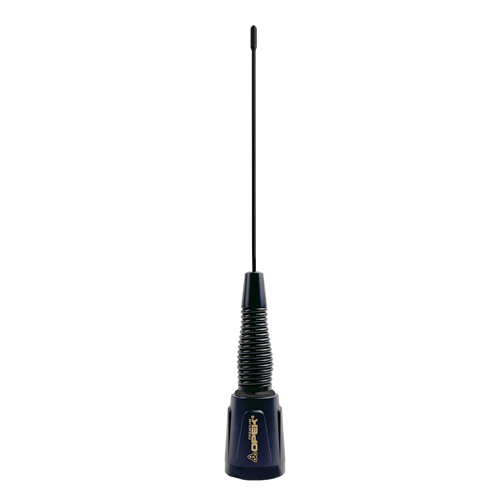

MODEL : UH-415SB
UHF MOBILE WIDE BAND COMMUNICATION ANTENNA
(No Tuning Needed)
- NMO Mounting
- Gold Plated Spring Contact
- Solid Brass bushing & Ferrule in Black Chrome Finish
Electrical Specifications :
- FREQUENCY : 380 ~ 520MHz
- Bandwidth : 140MHz
- GAIN : 4.5 dBi with Ground Plane
- Wave : 1/2 wave
- V.S.W.R. LESS THAN 2.0
- IMPEDANCE : 50 OHMS
- POWER CAPACITY : 160W
- CONNECTION : NMO
- LENGTH : 28cm (11 in)
