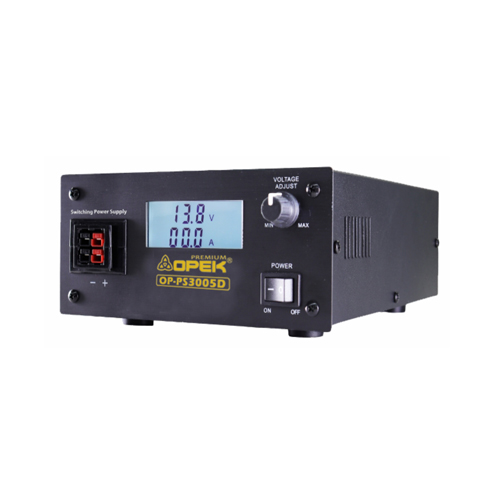

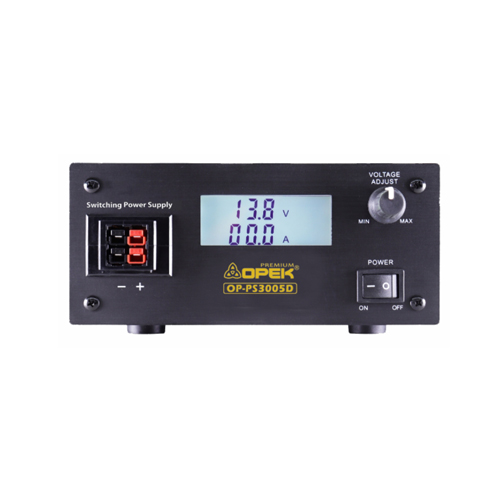

MODEL : OP-PS3005D
30 Amp Digital Switching Power Supply
Output : 9 to 15 VDC / Max. Current : 30 Amp / 110/220 VAC Input Power Selector Switch
INTRODUCTION:
OP-PS3005D is a high efficiency, small footprint, lightweight, high performance switching power supply. It is exceptionally
immune to Radio Frequency Interference at close range. It has the small footprint of popular radio transceivers, The
constant current protection, over temperature protection and output Over Voltage Protection(OVP) ensure better
reliability and safer protection to both the power supply and its connected load. One main DC output at rear and front
mounted Anderson power poles provide convenient DC connectivity. It has excellent line and load regulation, low ripple
and noise.
Specifications:
| MODEL | OP-PS3005D |
| Input Voltage | 110V/220V 50/60Hz, select with switch on bottom of unit |
| Display | 3 inches backlit LCD (Volts / Amps) |
| Output voltage regulation | less than 2% |
| Output Voltage | Fixed 13.8VDC±0.5V, 9-15VDC Adjustable |
| Amp Rating (13.8V) | 25A continuous / 30A Surge |
| Ripple & Noise | ≤100mVp-p |
| DC Output | Dual (Anderson) Powerpole connectors (Front) |
| DC Output | Binding Posts (Rear) |
| Fuse | 110V (8A) / 220V (5A) |
| Dimensions (L*W*H mm) | 165 x 80 x 200 (6.5”x3.2”x7.8”) |
| Net Weight | 1.54 kg (3.4 lbs) |
| Operating temperature rating | 0 ~ 50 °C |
| Storage temperature | -20 ~ 85 °C |
