MODEL : OP-PS3002
30 Amp Switching Power Supply
Output : 13.8 VDC / Max. Current : 30 Amp / 115 VAC Input Power
User Information:
- - The OPEK OP-PS3002 power supply is designed to run almost any 12 Volt Power electronic product.
- Check the mains supply voltage: Please confirm that the wall AC outlet input to the power supply is 110-120 VAC.
- Turning the power supply ON/Off: Please use the le" side rocker switch to turn the Power Supply On/Off.
- NOTE: It is recommended that you turn off your DC electronic equipment before turning off the power supply.
Specifications:
| MODEL | OP-PS3002 |
| Input Voltage | 115 VAC, 60Hz |
| Polarity Grounded | Negative |
| Output Voltage | 13.8 VDC Fixed |
| Amp Rating (13.8V) | 25A continuous / 30A Surge |

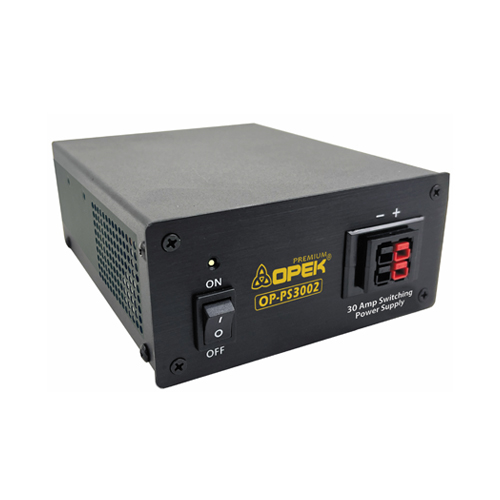

| DC Output | Dual (Anderson) Powerpole connectors (Front) |

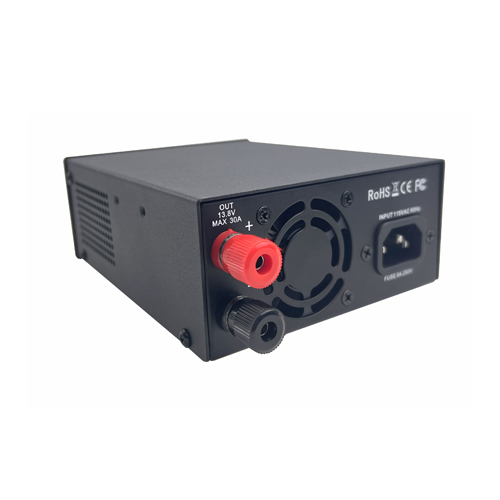

| DC Output | Binding Posts (Rear) |
| Internal Input Fuse | 8A @ 115 VAC |
| Ripple & Noise / Efficiency | <100mV / 75% |
| Dimensions (L*W*H mm) | 186 x 129 x 61 (7.3”x5”x2.5”) |
| Net Weight | 1.46 kg (3.2 lbs) |
| Operating temperature rating | 0 ~ 50 °C |
| Storage temperature | -20 ~ 85 °C |
