MODEL : OP-PS3001D
30 Amp Digital Switching Power Supply
Output : 4 to 16 VDC / Max. Current : 30 Amp / 115/230 VAC Input Power Selector Switch
User Information:
- The OPEK OP-PS3001D power supply is designed to run almost any 12 Volt Power electronic product.
- Initial Operation: Please confirm that the wall AC outlet input to the power supply is 110-120 VAC.

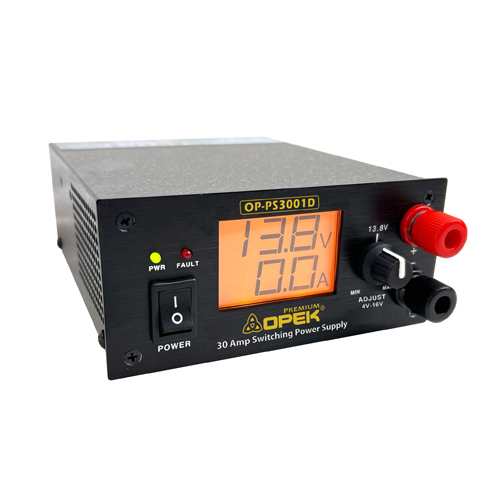

- Turning the power supply ON/Off: Please use the left side rocker switch to turn the Power Supply On/Off.
- NOTE: It is recommended that you turn off your DC electronic equipment before turning off the power supply.
Specifications:
| MODEL | OP-PS3001D |
| Input Voltage | 115 VAC or 230VAC |
| Input Frequency | 50/60 Hz |
| Polarity Grounded | Negative |
| Output Voltage | DC 4V~16V Adjustable |
| Amp Rating (13.8V) | 25A continuous / 30A Surge |
| Ripple & Noise / Efficiency | <100mV / 75% |
| Dimensions (L*W*H mm) | 154 x127x63 (6”x5”x2.5”) |
| Net Weight | 1.35 kg (2.98 lbs) |
| Operating temperature rating | 0 ~ 50 °C |
| Storage temperature | -20 ~ 85 °C |
