Telescopic Antenna / Spike Mount
DETAIL

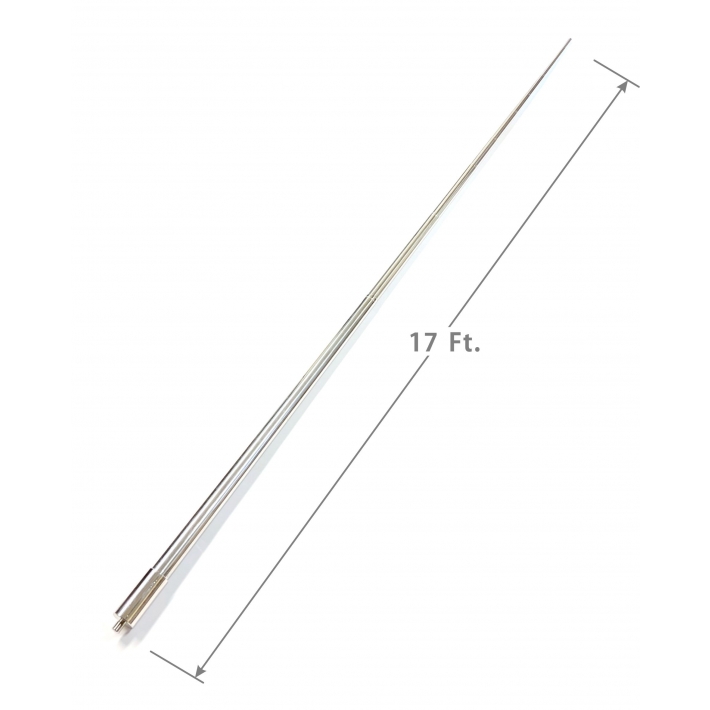

17ft. Stainless Steel Telescopic Antenna
(24”collapsed)
Features:
1. 10 - sections
2. Stainless Steel Construction

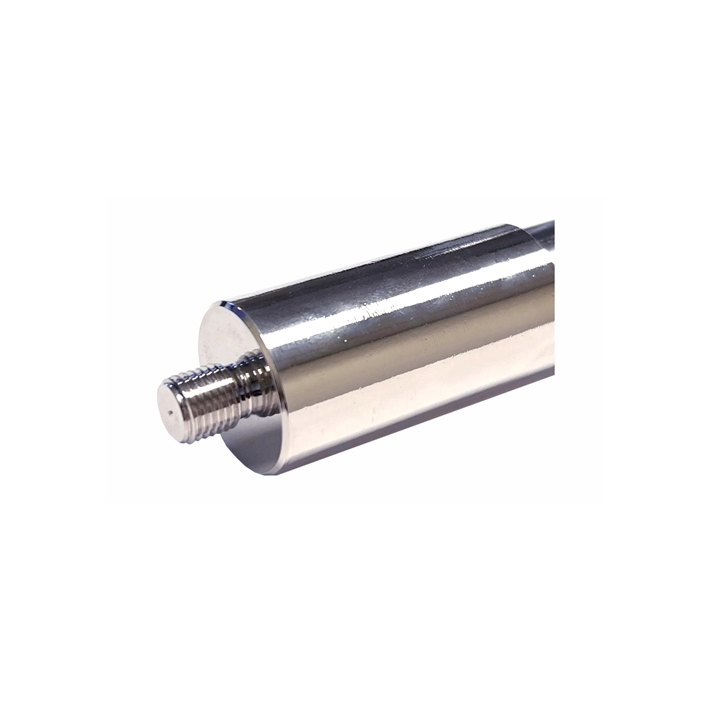

3. Standard 3/8"- 24T mounting stud
4. 7/8" (22mm) Diameter Bottom Section Tube
5. 1/2" (13mm)Diameter Top Section Tube
6. 1"Diameter by 2" Long Stainless Steel Bass

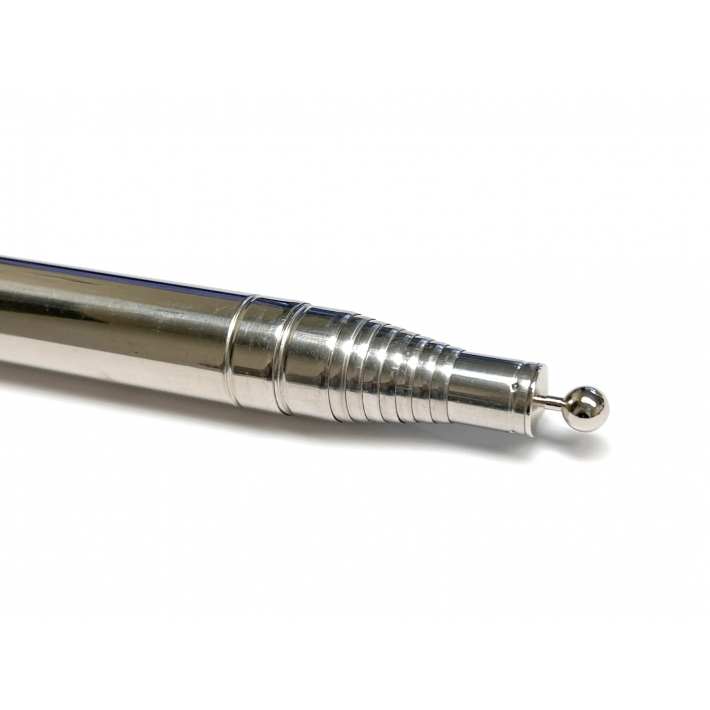

7. 5/16" (8mm) Diameter Round Top Ball
8. Affixed to a Base Mount for 1/4 Wave Vertical Use or a Dipole Mount
9.For full 1/4 Wave operation on 20 Meters without loading coil, and 30 / 40 / 60 / 80 / 160 Meters with loading coil
